Gazco Logic™ Inset Gas Fires

Gazco Logic™ Inset Gas Fires

Designed to warm the very heart of your home, a Gazco Logic™ Inset Gas Fire brings you the promise of cosy comfort throughout those long winter nights; even if you don’t have a chimney!

Whether you want to achieve an up-to-the-minute, contemporary look or have your heart set on a more traditionally-designed fire, you will find a choice of highly-realistic flame effects and elegant frame options to suit your decorative style and budget.

Logic™ Hotbox Conventional Flue

Suitable for all chimney types, the Logic™ Hotbox is an open-fronted fire with a realistic coal-effect fuel bed and a choice of manual or remote control options.

The Hotbox draws cool room air into the bottom of the appliance (2) and then emits radiant heat into the room (3) via the glow generated on the ceramic fuel bed, for convenient and comforting warmth with all the ambience of a real open fire.

Logic Hotbox Gas Fire
Logic Convector Gas Fire

Logic™ Convector Conventional Flue

The Logic™ Convector open-fronted fire features a convection system that provides additional heat and efficiency to that of the Hotbox. Suitable for all chimney types, this realistic coal-effect (1) fire has the option of either manual or remote control.

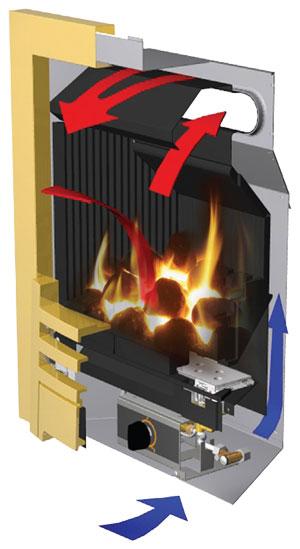

The convector box draws cool room air into the bottom of the convection chamber (2). The air is warmed as it passes over the hot surfaces of the chamber (3) and then emitted back into the room via the top convection slot (4).

Logic™ HE Balanced Flue & Conventional Flue


The Logic™ HE features a glass front and boasts the highest efficiency of all the Logic Fires at up to 89%. The HE offers a choice of highly realistic log or coal fuel effects (1). With both conventional and balanced flue models, the HE is even suitable for homes without a chimney!*

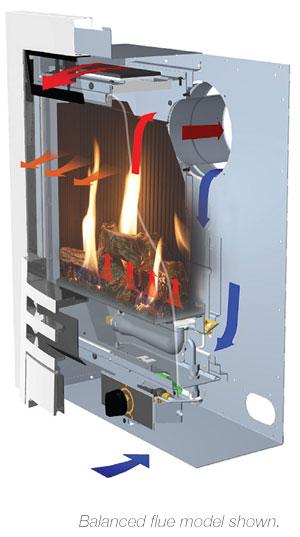

The Logic HE box draws cool room air into the bottom of the convection chamber (2) the cool air is warmed as it passes over the hot surfaces of the chamber and the hot air is then emitted back into the room via the top convection slot (3). Maximum heat is radiated into the room via the virtually invisible glass front (4), with most models featuring specially designed non-reflective glass. The Logic HE balanced flue, Coal-effect fires have been specifically designed with reduced depth to allow for easy installation into the internal skin of a traditional cavity wall. Logic HE Coal-effect conventional flue fires feature specially moulded coals for added ease of installation.

* Balanced flue models only.

Logic HE Gas Fires

Logic™ Control Options

The Logic family* of fires are available with your choice of three different control options: manual control, slide control or, for absolute convenience, a remote control for the ultimate luxury heating experience.

Manual Control

logic-manualAn easy to use system that allows for ignition, extinguishing and full flame control all from a single control handle. To maintain the aesthetic appeal of your fire, the controls are discretely located behind the frame front at the bottom of the fire and can be accessed with ease.

Slide Control

logic-manualGazco’s innovative Slide system has a subtly designed, ergonomic control that is situated to the top right hand side of the fire’s frame for easy access. This easy reach lever offers complete and convenient control over the fire. Ignite or extinguish the fire as well as adjust flame height and corresponding heat levels to achieve the warmth and ambience you desire. Slide control Logic fires are available with a specific selection of frame styling options, please see table below for details.

logic-manualLogic HE Conventional Flue Coal-effect slide control fires feature a new injection moulded control handle which is cooler to the touch.

Remote Control Options

logic-manualLogic HE remote control fires offer complete convenience, allowing you to operate your fire from the comfort of your sofa. Your fire’s remote control options will depend on which fuel-effect you choose.

Coal-effect Logic HE balanced flue remote control fires come with our standard handset, which allows you to adjust heat output and flame height. For greater control, you can select the optional Programmable Thermostatic handset, which lets you thermostatically control the room temperature as well as scheduling your fire toswitch itself on and off twice a day, once the pilot has been ignited.

Log-effect Logic HE fires and Coal-effect Logic HE conventional flue fires can be selected with our fully-sequential thermostatic handset. This advanced remote control allows you to ignite your fire and adjust the flame without getting up. This powerful control system can also set your Logic fire to maintain your preferred room temperature, if desired.

*Logic HE Log-effect is only available with Slide Control and Remote Control options.

Key Features

Logic Hotbox* Logic Convector* Logic HE
Efficiency 60% 68.5% CF: Up to 89%
BF: Up to 86%
Heat output Up to 3.70kW (input 6.70kW) Up to 4.20kW (input 6.70kW) CF: Up to 3.90kW (input 5.20kW)
BF: Up to 3.40kW (input 4.40kW)
Manual versions
Slide control
Remote control
Fits into standard 410x560x250mm
(wxhxd) fireplace opening
Fuel bed options Coal Coal Coal & Logs
Convected heat
Radiant heat
Wide selection of frames
Natural Gas or LPG
Can be wall mounted
Ambient open fire
Glass fronted high efficiency
ODS (Oxygen Depletion Sensor)
Additional air vent required
Conventional Flue
Balanced Flue
Energy Efficiency Class F F B

*This product is not suitable for primary heating purposes.

Logic Front Choices

Manual & Remote Control Fires

Logic Hotbox Logic Convector Logic HE (logs) Logic HE (coals)
Arts More info
Wave More info
Chartwell More info

Slide Control Fires

Logic Hotbox Logic Convector Logic HE (logs) Logic HE (coals)
Arts More info
Wave More info
Chartwell More info

Logic Frame Choices

Manual & Remote Control Fires

Logic Hotbox Logic Convector Logic HE (logs) Logic HE (coals)
Arts More info
Box Profil More info
Arts2 More info
Box Profil2 More info

Slide Control Fires

Logic Hotbox Logic Convector Logic HE (logs) Logic HE (coals)
Arts More info
Box Profil More info
Arts2 More info
Box Profil2 More info

Logic Complete Choices

Manual & Remote Control Fires

Logic Hotbox Logic Convector Logic HE (logs) Logic HE (coals)
Stockton Inset More info
Richmond More info
Winchester More info
Tempo More info
Designio2 Glass More info
Designio2 Steel More info
Beat More info
Vogue Inset More info

Slide Control Fires

Logic Hotbox Logic Convector Logic HE (logs) Logic HE (coals)
Stockton Inset More info
Richmond More info
Winchester More info
Tempo More info
Designio2 Glass More info
Designio2 Steel More info
Beat More info
Vogue Inset More info
